ATP 100

Turbo Technics

Actuator Tester And Programmer

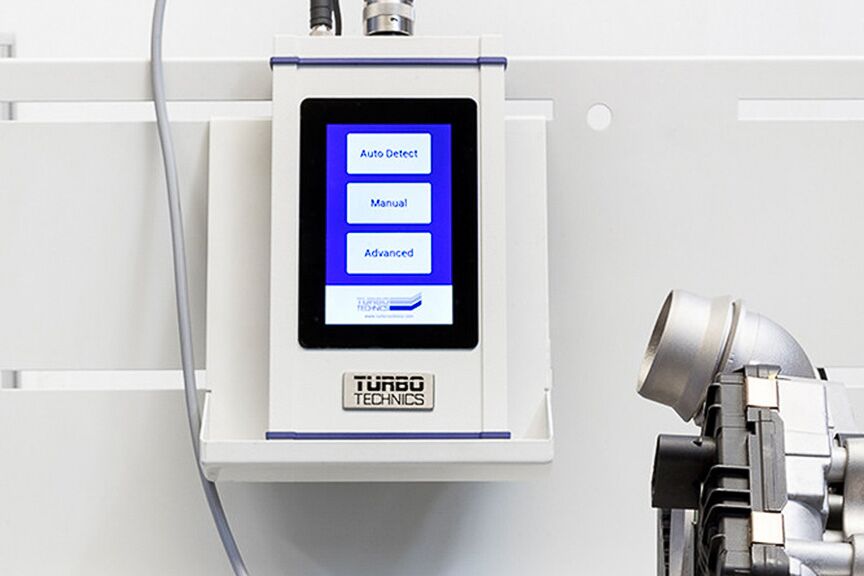

The ATP 100 is a standalone turbocharger actuator tester and combined advanced programming tool. It allows electronic actuators to be tested and set. This unit is aimed at service personnel and turbocharger repairers and is ideal for customers with the Turbo Technics VTR 100 or the VSFR.

Sophisticated yet simple to operate, the ATP 100 uses a 5” full colour PCAP touch screen with a single touch ‘Auto-Detect’ feature which allows communication with almost any type of actuator. Plug-in enabled connectivity is available for a wide variety of actuator types.

Advanced

Reprograming System

The ATP 100 has an advanced reprogramming system for the Garrett® Hella REA® so it can be used for the following:

  • Reset end stop positions
  • Set minimum flow position
  • Copy actuator settings to match a specific G-number (gearbox) using the built in database
  • Check voltage output of position sensors fitted to vacuum actuators

ATP 100

What's included

  • ATP 100 tester / programmer
  • 12V DC 5A PSU- UK AND EURO PLUG AVAILABLE
  • USB-A TO MINI USB-B LEAD
  • CARRY CASE WITH MOULDED FOAM INSERTS
  • FIRMWARE FULLY UPGRADABLE VIA BUILT IN USB PORT USING ANY COMPATIBLE PC
  • ATP-100/2/1 – Hella REA
  • ATP-100/2/2 – Hella S-REA
  • ATP-100/2/3 – Hella New Style REA
  • ATP-100/2/4 – Siemens/Mercedes VDO
  • ATP-100/2/5 – Sonceboz
  • ATP-100/2/6 – Siemens/Audi VDO
  • ATP-100/2/7 – Continental
  • ATP-100/2/8A – Toyota Twin Cable
  • ATP-100/2/8B – Toyota Single Cable
  • ATP-100/2/9 – Mahle
  • ATP-100/2/12A
  • ATP-100/2/12B
  • ATP-100/2/12/C
  • ATP-100/2/12/D
