VSR 3

Turbo Technics

VSR 3

The VSR 3 is a Vibration Sorting Rig (VSR™) that has been designed for the smaller workshop to measure and correct vibration for passenger car and light commercial vehicle turbocharger cores (CHRA).

An entry level machine, the VSR 3, is designed for high versatility and quick model change.  The compact footprint, energy efficiency and simplicity of integration make the VSR 3 balancing machine the perfect choice for the small workshop or specialist low volume manufacturer.

VSR 3

Optional

Accessories

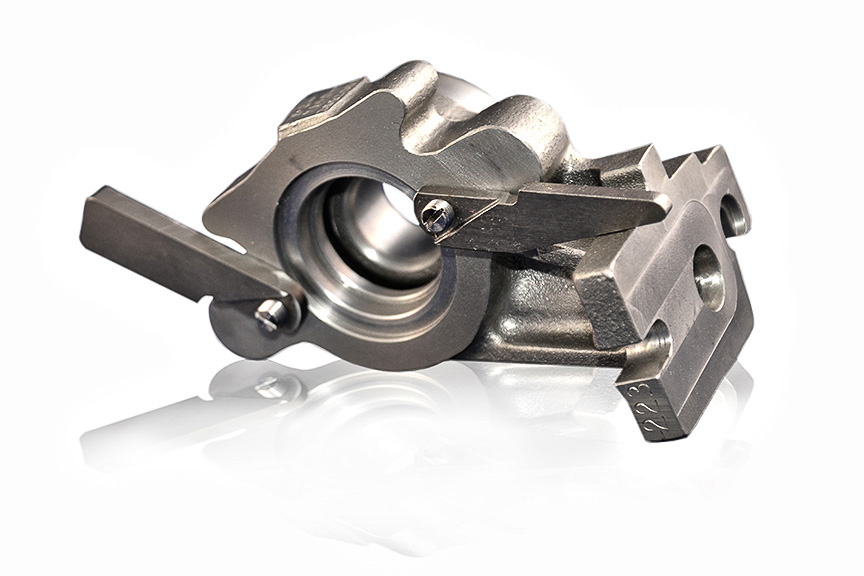

TURBINE HOUSING ADAPTERS

A large range of quick-change CHRA-specific housing adapters are available, including reverse rotation types.

The VSR 3 comes with the TT multi adapter tool which allows cost effective testing of many different applications.

ACCESSORIES

Turbo Technics offer a comprehensive range of accessories and adapters for all test machines. Additional optional components allow machines to be tailored to customer specification.

LATEST TECHNOLOGY

UK DESIGN & BUILD

As with all TT machines, the VSR 3 uses the latest touch-screen technology, an intuitive interface and in-built connectivity which allows remote technical support from TT via the internet. The easy to use software can be quickly mastered in a few hours with additional free training available at TT UK HQ if required.

All Turbo Technics machines are designed and built in the UK and available through the TT distributor network.

VSR 3
VSR 3

Industry Standard

Market Leader

Tracing its history from the VSR Mk 3 launched in 1999 through the VSR 300, the VSR 301 and now the latest VSR 3, Turbo Technics revolutionised the turbo aftermarket industry. The VSR 3 series remains the market leader with many hundreds of machines still in use today throughout the turbo industry worldwide.

VSR 3 benefits &

Key Features

  • Cost effective balancing solution for the smaller workshop
  • Versatile machine for all passenger car turbo cores
  • Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
  • Wide range of turbine housing adapters
  • Forward and reverse rotation
  • Standard single phase electrical connection
  • Excellent air efficiency
  • Robust steel cabinet
  • Small footprint
  • Touch-screen computer operation
  • Intuitive operation – free training at UK headquarters
  • Quick model change over
  • Multi adaptor included
  • User interface language options
  • VSR™ vibration measurement in gpk
  • Balance tests can be printed and saved
  • Built in calibration
  • Remote technical support and software updates via internet
  • Fully tested and calibrated prior to delivery
  • Safety interlocked, PAT tested, CE certificated
  • UK manufacture
  • 24 month warranty

The VSR 3 is an entry level machine designed for high versatility and quick model change. The compact footprint, speed of operation and simplicity of integration make it perfect for the small workshop.

VSR 3 benefits &

Key Features

  • Cost effective balancing solution for the smaller workshop
  • Versatile machine for all passenger car turbo cores
  • Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
  • Wide range of turbine housing adapters
  • Standard single phase electrical connection
  • Excellent air efficiency
  • Robust steel cabinet
  • Small footprint
  • Touch-screen computer operation
  • Intuitive operation – free training at UK headquarters
  • Quick model change over
  • Multi adaptor included
  • User interface language options
  • VSR™ vibration measurement in gpk
  • Balance tests can be printed and saved
  • Built in calibration
  • Remote technical support and software updates via internet
  • Fully tested and calibrated prior to delivery
  • Safety interlocked, PAT tested, CE certificated
  • UK manufacture
  • 24 month warranty LINK

The VSR 3 is an entry level machine designed for high versatility and quick model change. The compact footprint, speed of operation and simplicity of integration make it perfect for the small workshop.

VSR 3

VSR 3

Technical Specification

Balancing SpeedRanges up to 300,000 rev/min
Impeller Tip Speed Up to 550 m/s
Maximum Turbine Wheel Diameter85 mm approximately
Maximum Rotor Length180 mm approximately

Discover More

Our Other VSR™ Products

Production level, manual and semi-automated VSR™ for passenger car turbos

Production level, manual and semi-automated VSR™ for commercial vehicle turbos

Latest edition VSR™ brings increased production with reduced costs
