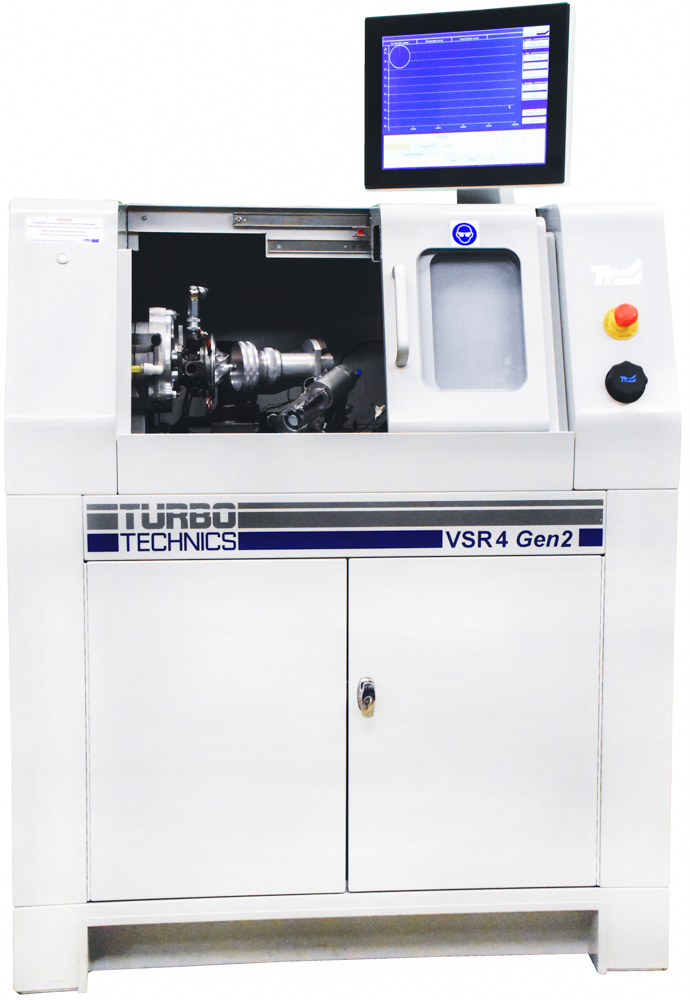

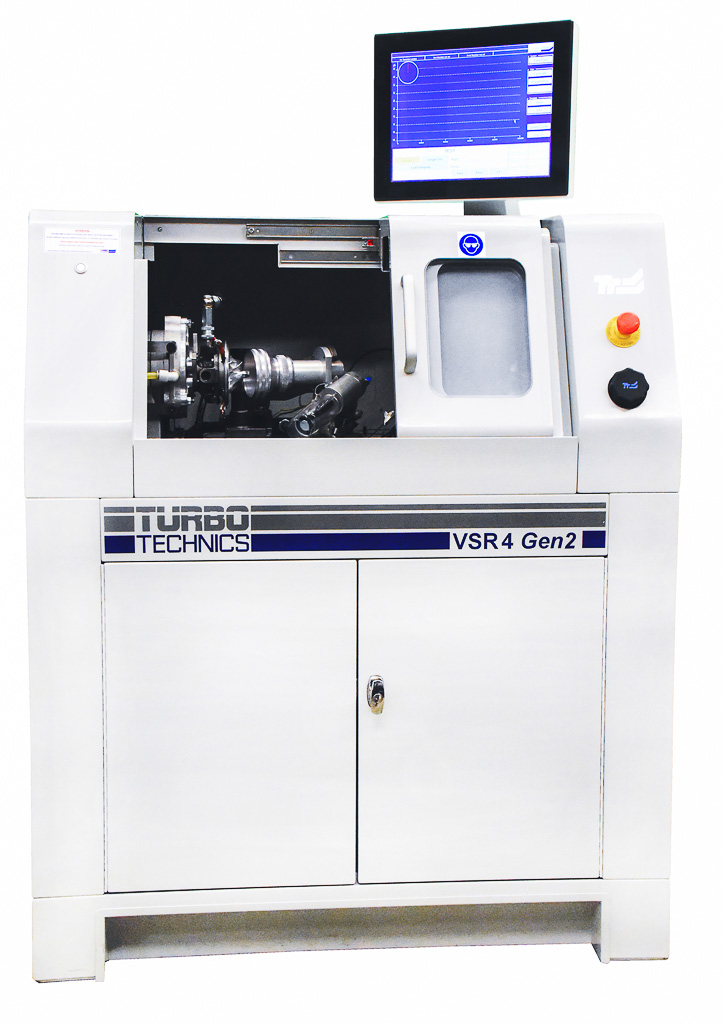

VSR4 GEN2

Turbo Technics

VSR4 GEN2

Building on the success of the VSR400 series and over 35 years experience in the industry comes the very latest in turbo balancing technology, the VSR4 GEN2.

This recent addition to the world renowned VSR range brings process improvements and benefits to increase production while reducing costs.

The VSR4 GEN2 has been designed to cover an extended range of core sizes from the very smallest to the larger frame sizes, covering most passenger car and commercial vehicle applications.  The patented mounting and drive system allows great flexibility with outstanding air efficiency and reduced adapter costs.

VSR4 GEN2

THE TURBO TECHNICS

NEXT GENERATION VSR™ FEATURES

+
+
+
+
+
+
INCREASED CORE CAPACITYThis next generation machine will allow a larger range of core sizes covering cars and trucks up to 86mm diameter turbine wheel.
COST EFFECTIVE ADAPTERSReduced cost housing adapters compared to VSR400 series.
TURBO TECHNICS PATENTED DRIVE SYSTEMFor maximum air efficiency and speed.
AUTOMATIC TEST CYCLE WITH MANUAL OPTIONAutomatic test cycle provides repeatable test sequences everytime for production environment. Manual option provides flexibility to perform one off jobs, prototypes or development work without the need to create a specific template.
OIL PRESSURE CONTROLSet oil pressure is maintained by computer control of pump speed giving improved repeatability and consistency of results.
BESPOKE SOFTWARE AND MANAGEMENT SYSTEMTurbo Technics designed for this next generation VSR™ machine.
MAGNETIC AND OPTICAL SPEED SENSINGOption to test conventional and “boreless” type cores.
Quick changeover from magnetic to optical with cartridge type sensor housing.
BUILT IN AUTOMATIC MAGNETISATIONRemoves the need for magnetisation of the core by the operator.
IMPROVED SPEED SENSOR & CUTTER ARM OPERATIONStepper motor driven slider for speed sensor and cutter arm positioning. Reduces the cycle time and improves accuracy of sensor positioning and repeatability of reading.

VSR4 GEN2 benefits &

Key Features

  • Versatile machine for the higher volume after-market and lower volume OE manufacturer
  • Wide range of core sizes covering passenger and commercial vehicles
  • Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
  • Wide range of turbine housing adapters
  • 3 stage oil filtration with temperature control
  • Automatic oil purge
  • Standard single phase electrical connection
  • Excellent air efficiency
  • Robust steel cabinet, small footprint
  • Integral exhaust silencer
  • Intuitive operation – free training at UK headquarters
  • User configurable software and templates
  • Quick model change over
  • Choice of automatic or manual test cycle
  • Automatic length setting to suit core
  • Integral & second cutter for balance corrections
  • Oil mist extraction
  • User interface language options
  • VSR vibration measurement in gpk
  • Balance tests can be printed and saved
  • Built in calibration
  • Optional software allows data storage from multiple TT VSR and VTR machines
  • Touch-screen computer operation
  • Remote technical support and software updates via internet
  • Fully tested and calibrated prior to delivery
  • Safety interlocked, PAT tested, CE certificated
  • UK manufacture
  • 24 month warranty

The VSR4 GEN2 is designed for wide range with high versatility and quick model change. The automated operation, short cycle time and simplicity of integration make it perfect for larger workshops.

VSR 400 benefits &

Key Features

  • Versatile machine for the higher volume after-market and lower volume OE manufacturer
  • Wide range of core sizes covering passenger and commercial vehicles
  • Fastest balancing speed – up to 300,000 rpm matching actual operating speeds
  • Wide range of turbine housing adapters
  • 3 stage oil filtration with temperature control
  • Automatic oil purge
  • Standard single phase electrical connection
  • Excellent air efficiency
  • Robust steel cabinet, small footprint
  • Integral exhaust silencer
  • Intuitive operation – free training at UK headquarters
  • User configurable software and templates
  • Quick model change over
  • Choice of automatic or manual test cycle
  • Automatic length setting to suit core
  • Integral & second cutter for balance corrections
  • Oil mist extraction
  • User interface language options
  • VSR vibration measurement in gpk
  • Balance tests can be printed and saved
  • Built in calibration
  • Optional software allows data storage from multiple TT VSR and VTR machines
  • Touch-screen computer operation
  • Remote technical support and software updates via internet
  • Fully tested and calibrated prior to delivery
  • Safety interlocked, PAT tested, CE certificated
  • UK manufacture
  • 24 month warranty LINK

The VSR4 GEN2 is designed for wide range with high versatility and quick model change. The automated operation, short cycle time and simplicity of integration make it perfect for larger workshops.

VSR4 GEN2

Optional

Accessories

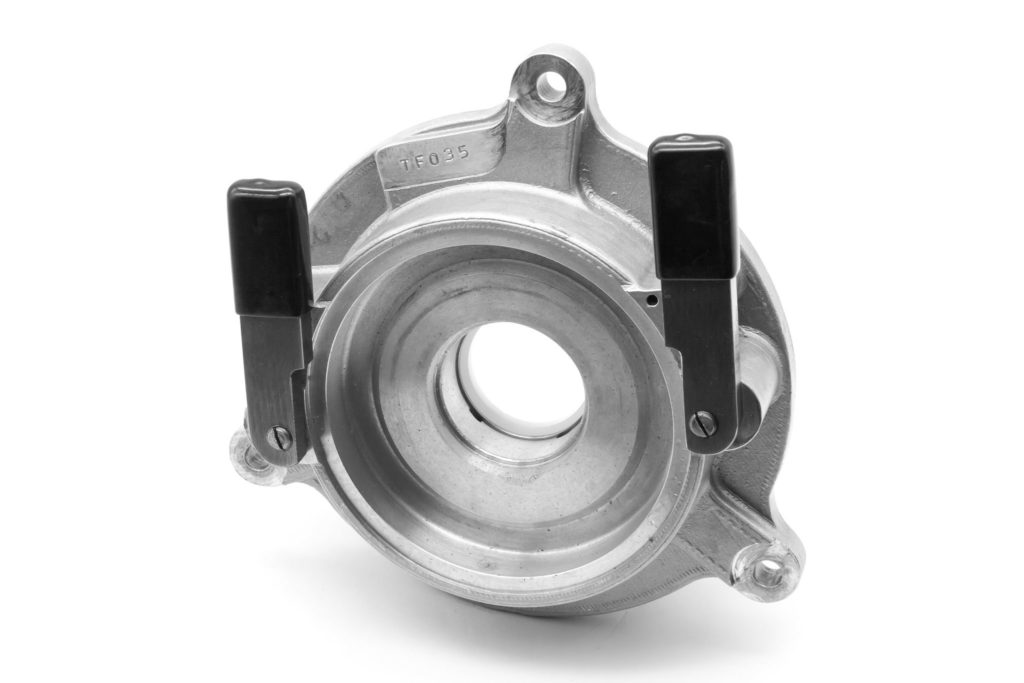

TURBINE HOUSING ADAPTERS

A large range of quick-change CHRA-specific housing adapters are available.

ACCESSORIES

Turbo Technics offer a comprehensive range of accessories and adapters for all test machines. Additional optional components allow machines to be tailored to your specification.

Latest Technology

UK Design & Build

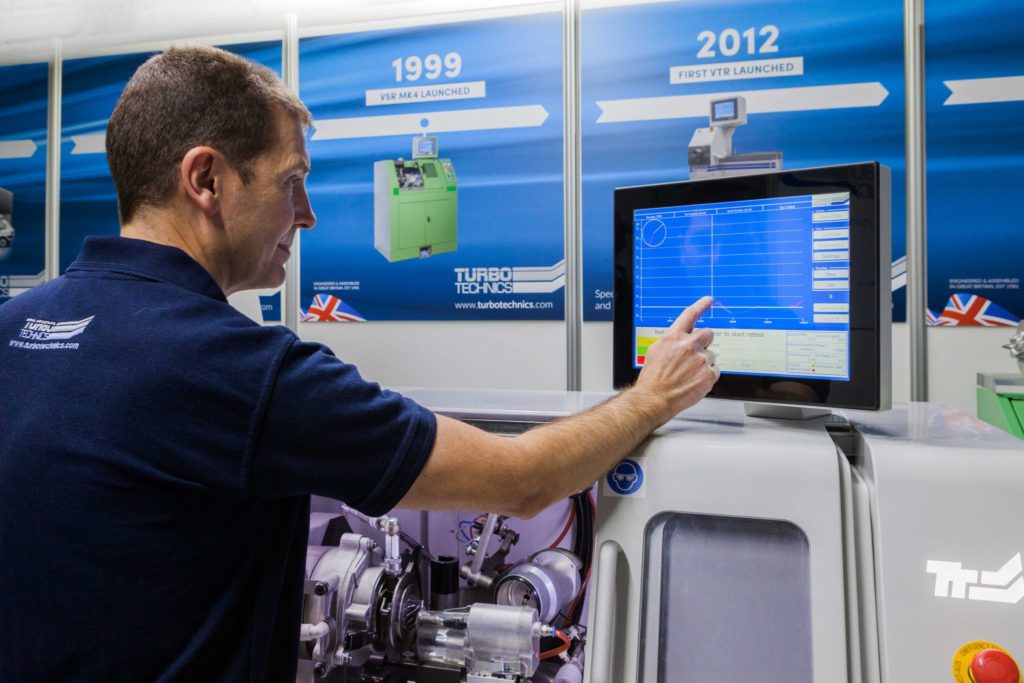

As with all TT machines, the VSR4 GEN2 uses the latest touch-screen technology, an intuitive interface and in-built connectivity which allows remote technical support from TT via the internet. The easy to use software can be quickly mastered in a few hours with additional free training available at TT UK HQ if required.

All Turbo Technics machines are designed and built in the UK and available through the TT distributor network.

VSR4 GEN2

Discover More

Our Other VSR™ Products

Affordable, low-volume VSR™ for passenger car turbos

Production level, manual and semi-automated VSR™ for passenger car turbos

Production level, manual and semi-automated VSR™ for commercial vehicle turbos
